General Information

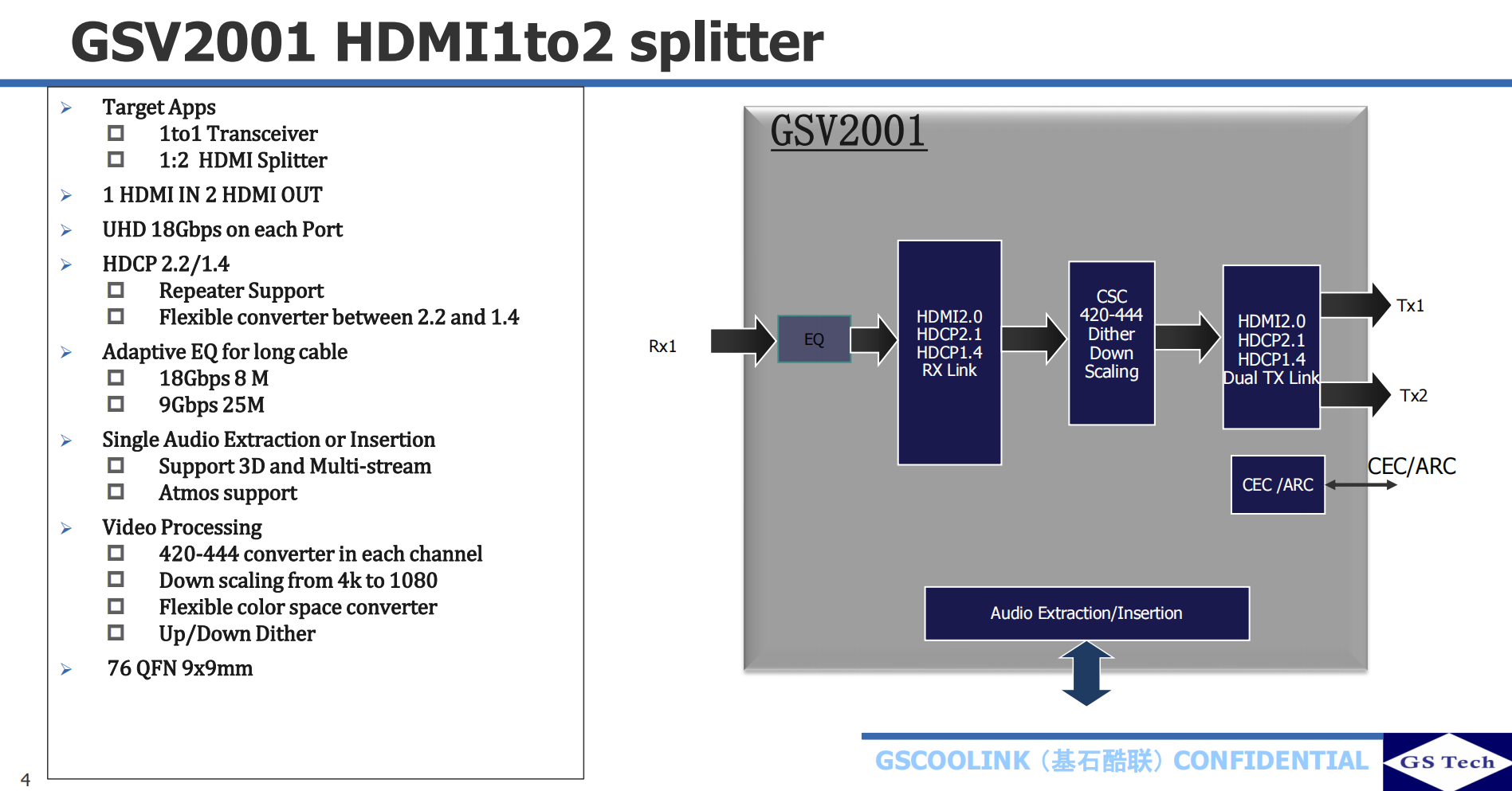

The GSV2001 is HDMI1.4/2.0 compatible,HDCP 1.4/2.2 supported,configurable 1-in-2-out repeater device.All 2 outputs are identical on transmitter capability.The HDMI input and output maximum processing pixel clock frequency is 600MHz which means the video resolution can support up to 4kx2k 60Hz 4:4:4 8-bit.The maximum processing audio sample frequency is 192K Hz for non-compression timing.

GSV2001 supports HDR10 and Dolby Vision HDR as input and output.For audio insertion and extraction,the versatile TTL pin bus of GSV2001 can be configured as either input mode or output mode regarding platform requirement.

GSV2001 can support up to 8-channel I2S or 2-channel S/PDIF,3D and multi-stream audio.In TDM mode,each audio pin supports up to 8 channels.Internal Scaler and Color Space Converter enables the input and output to be timing format independent and capable of long distance transmission.With powerful HDMI Rx equalizer and Tx pre-emphasis capability,GSV2001 can cascade itself(or GSV2000 series chips)with at least 7 stages for all HDMI 1.3/1.4/2.0 timings.An internal Clock Generator can be used to generate 4 independent output clocks,which will greatly remove complexity of using dedicated clock device.

GSV2001高性價比HDMI2.0/HDCP2.2 1to2 Splitter，支持DownScaler，CSC及音頻分離和音頻嵌入，支持ARC及CEC功能?？梢蕴娲鶬TE CH6001/IT6663  EP9162S LT86012
GS2001業(yè)界體積最小，功耗最少，兼容性和驅動能力最強。

功能特征

1、HDMI2.0/HDCP2.2 1to2 Splitter

2、Support 4K DownScaler, CSC

3、Support audio Extraction/Insertion

4、Support CEC

5、Support ARC

6、Video Matrix

7、Soundbar

8、Audio Box

9、Splitter
