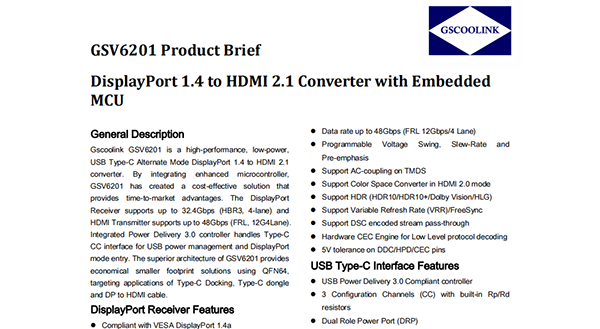

General Description
Gscoolink GSV6201 is a high-performance,low-power,USB Type-C Alternate Mode DisplayPort 1.4 to HDMI 2.1 converter.By integrating enhanced microcontroller,
GSV6201 has created a cost-effective solution that provides time-to-market advantages.The DisplayPort Receiver supports up to 32.4Gbps(HBR3,4-lane)and HDMI Transmitter supports up to 48Gbps(FRL,12G4Lane).Integrated Power Delivery 3.0 controller handles Type-C CC interface for USB power management and DisplayPort
mode entry.The superior architecture of GSV6201 provides economical smaller footprint solutions using QFN64,targeting applications of Type-C Docking,Type-C dongle and DP to HDMI cable.
DisplayPort Receiver Features
?Compliant with VESA DisplayPort 1.4a
?Compliant with HDCP 2.2/2.3 and HDCP 1.4
?Support HBR3,HBR2,HBR and RBR(8.1/5.4/2.7/1.62 Gbps)
?Flexible 1/2/4 lane Main-Link configuration
?Programmable Adaptive Equalization
?Support Full-Link Training and No-Link Training
?Support High Dynamic Range(HDR)and Dynamic/Static Metadata
?Support Adaptive Sync/FreeSync
?Support Audio Extraction
?Support Horizontal Blanking Expansion up to 4K 120Hz format
?Support Forward Error Correction(FEC)
?Embedded arbitrary EDID and MCCS
?Support Spread Spectrum Clock(SSC)
HDMI Transmitter Features
?Compliant with HDMI 2.1,HDMI 2.0b,HDMI 1.4b
?Compliant with HDCP 2.2/2.3 and HDCP 1.4
?Data rate up to 48Gbps(FRL 12Gbps/4 Lane)
?Programmable Voltage Swing,Slew-Rate and Pre-emphasis
?Support AC-coupling on TMDS
?Support Color Space Converter in HDMI 2.0 mode
?Support HDR(HDR10/HDR10+/Dolby Vision/HLG)
?Support Variable Refresh Rate(VRR)/FreeSync
?Support DSC encoded stream pass-through
?Hardware CEC Engine for Low Level protocol decoding
?5V tolerance on DDC/HPD/CEC pins
USB Type-C Interface Features
?USB Power Delivery 3.0 Compliant controller
?3 Configuration Channels(CC)with built-in Rp/Rd resistors
?Dual Role Power Port(DRP)
?Fast Role Swap
?USB 2.0 full-speed billboard enumeration
Audio Input/Output Features
?I2S and SPDIF Audio Extraction from HDMI Rx
?I2S/SPDIF Audio Insertion to HDMI Tx
?SPDIF/I2S/HBR/DSD/TDM Format Supported for Audio Extraction and Insertion
?SPDIF to I2S Conversion using single TTL bus in Bi-direction
System Features
?Embedded internal MCU
?Optional Internal Flash or External pins of Flash QSPI interface
?External 25MHz Crystal required
?Available Pins for UART/Timer/GPIO
?Temperature Sensor Monitoring Circuit
