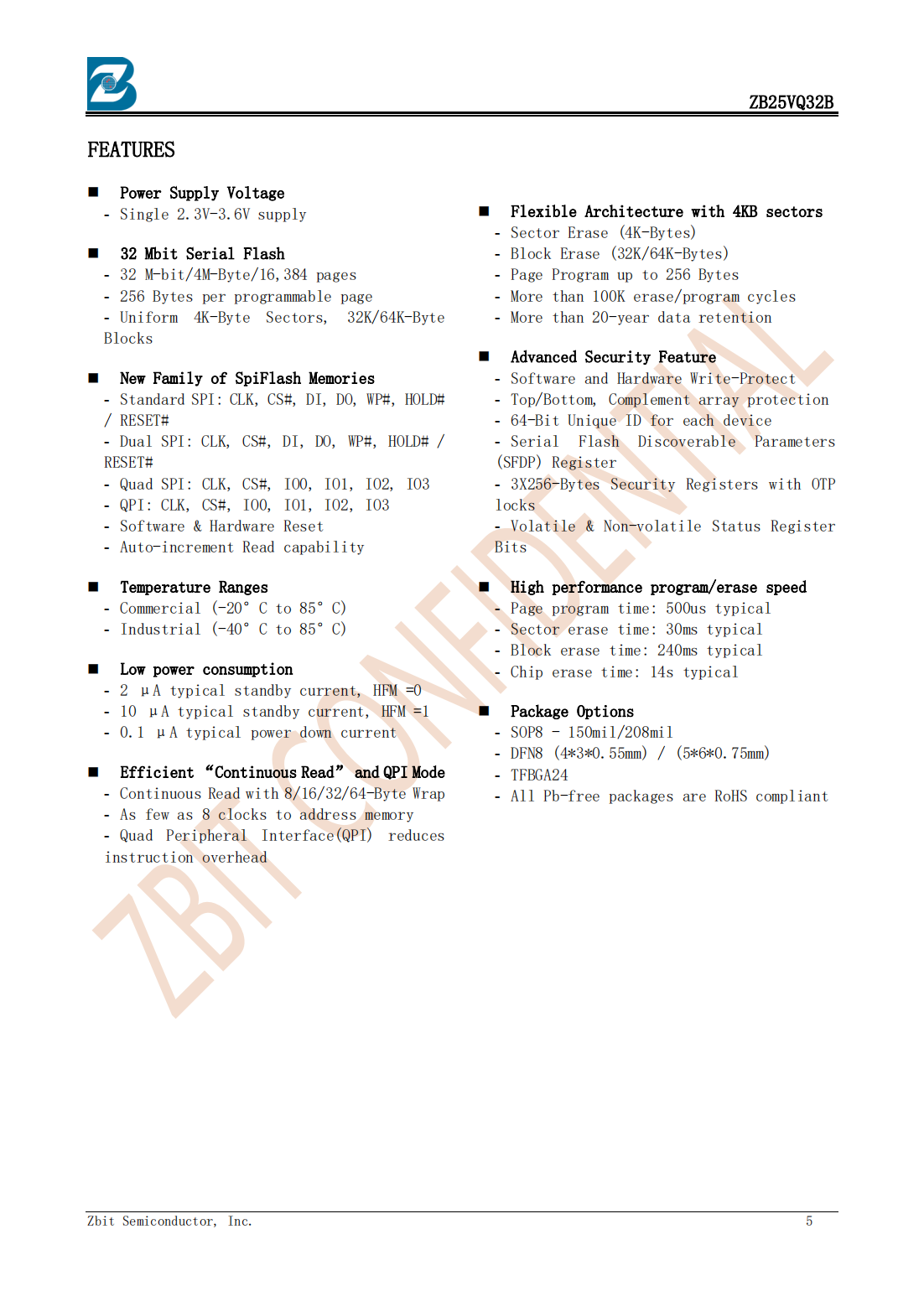

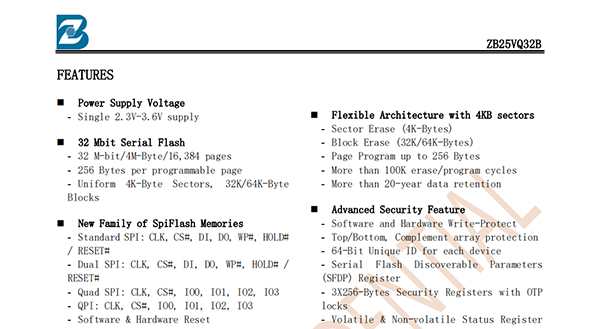

FEATURES
?Power Supply Voltage
-Single 2.3V-3.6V supply
?32 Mbit Serial Flash
-32 M-bit/4M-Byte/16,384 pages
-256 Bytes per programmable page
-Uniform 4K-Byte Sectors,32K/64K-Byte Blocks
?New Family of SpiFlash Memories
-Standard SPI:CLK,CS#,DI,DO,WP#,HOLD#/RESET#
-Dual SPI:CLK,CS#,DI,DO,WP#,HOLD#/RESET#
-Quad SPI:CLK,CS#,IO0,IO1,IO2,IO3
-QPI:CLK,CS#,IO0,IO1,IO2,IO3
-Software&Hardware Reset
-Auto-increment Read capability
?Temperature Ranges
-Commercial(-20°C to 85°C)
-Industrial(-40°C to 85°C)
?Low power consumption
-2μA typical standby current,HFM=0
-10μA typical standby current,HFM=1
-0.1μA typical power down current
?Efficient“Continuous Read”and QPI Mode
-Continuous Read with 8/16/32/64-Byte Wrap
-As few as 8 clocks to address memory
-Quad Peripheral Interface(QPI)reduces instruction overhead
?Flexible Architecture with 4KB sectors
-Sector Erase(4K-Bytes)
-Block Erase(32K/64K-Bytes)
-Page Program up to 256 Bytes
-More than 100K erase/program cycles
-More than 20-year data retention
?Advanced Security Feature
-Software and Hardware Write-Protect
-Top/Bottom,Complement array protection
-64-Bit Unique ID for each device
-Serial Flash Discoverable Parameters(SFDP)Register
-3X256-Bytes Security Registers with OTP locks
-Volatile&Non-volatile Status Register Bits
?High performance program/erase speed
-Page program time:500us typical
-Sector erase time:30ms typical
-Block erase time:240ms typical
-Chip erase time:14s typical
?Package Options
-SOP8-150mil/208mil
-DFN8(4*3*0.55mm)/(5*6*0.75mm)
-TFBGA24
-All Pb-free packages are RoHS compliant
