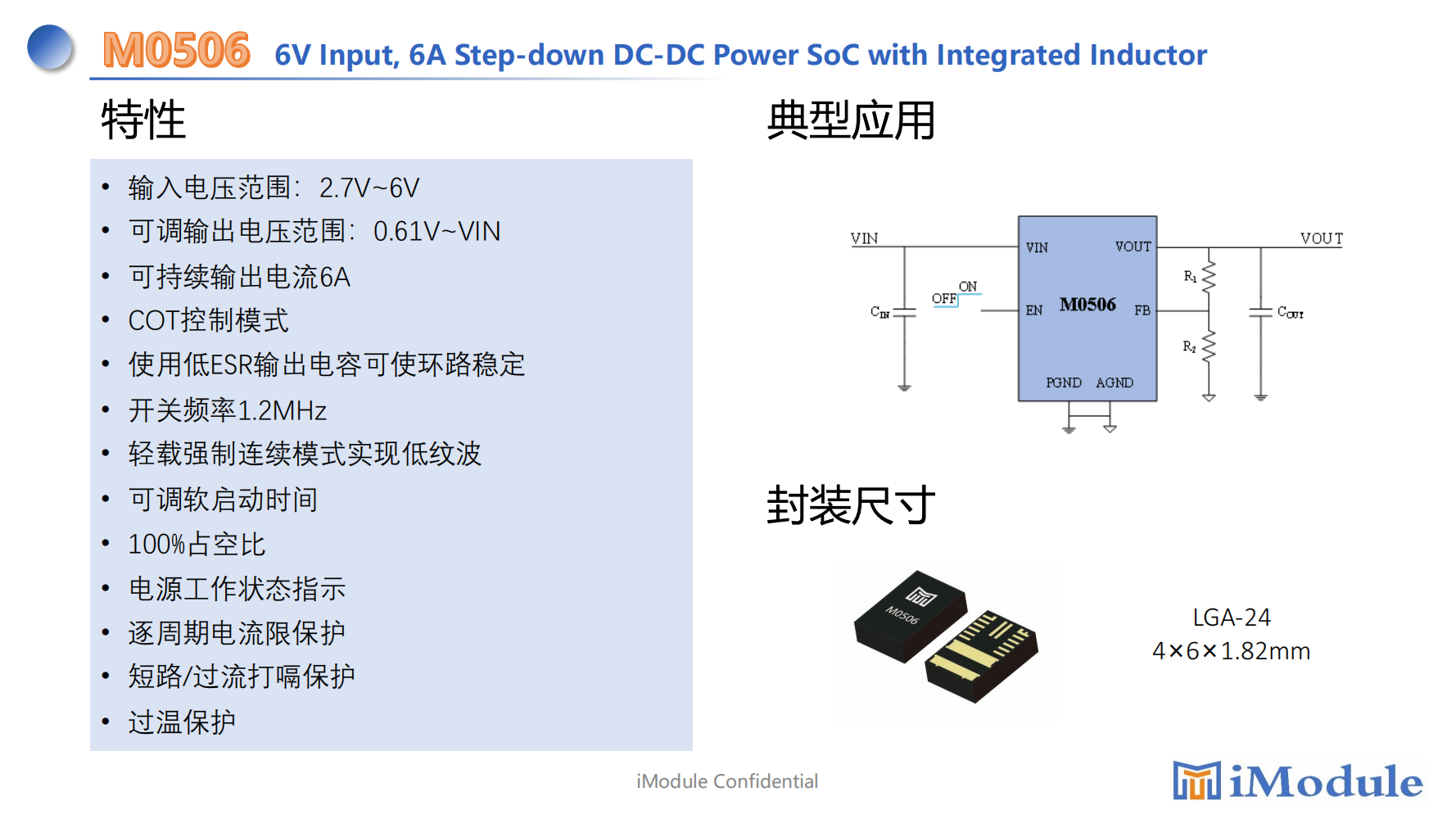

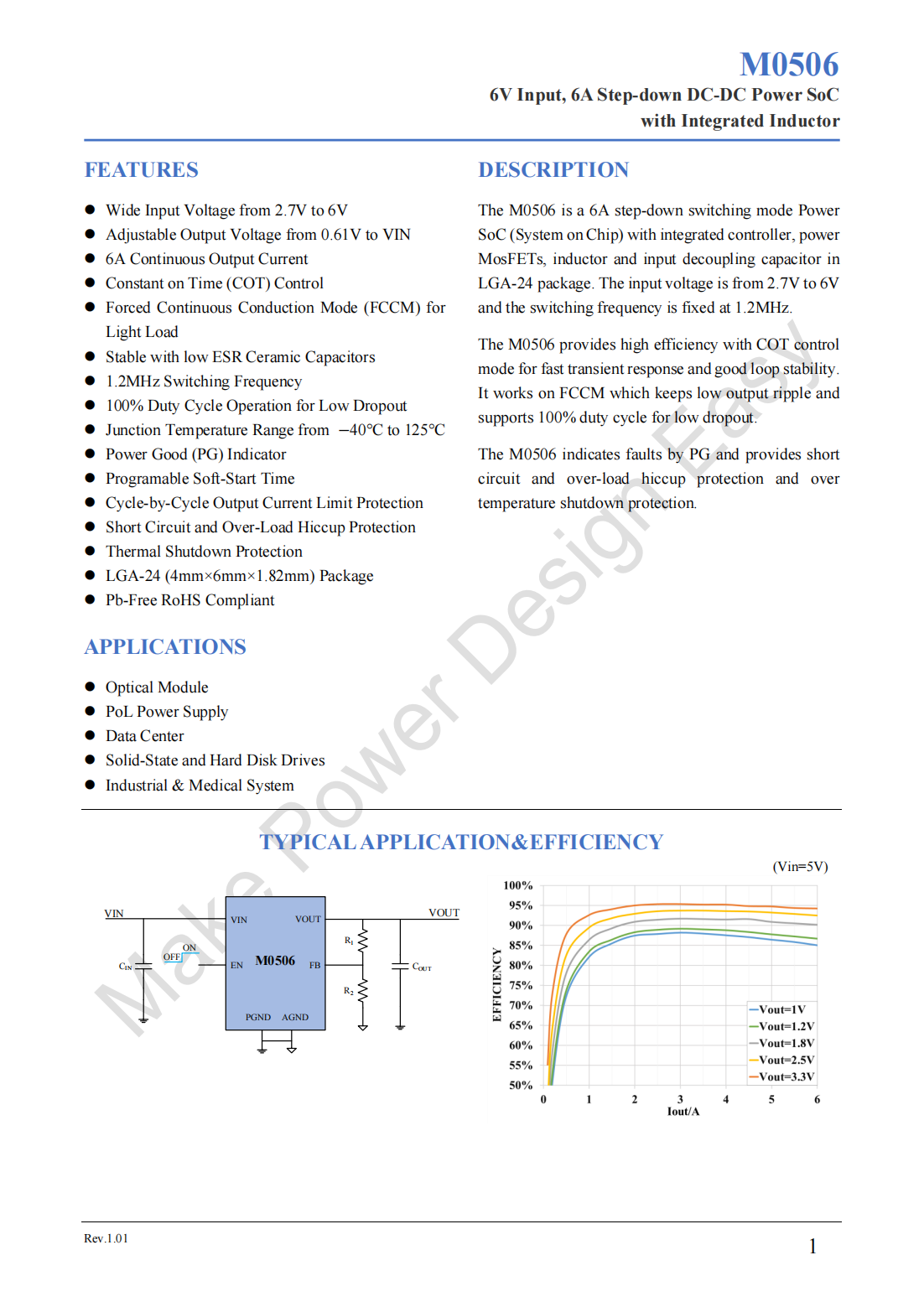

FEATURES
?Wide Input Voltage from 2.7V to 6V
?Adjustable Output Voltage from 0.61V to VIN
?6A Continuous Output Current
?Constant on Time(COT)Control
?Forced Continuous Conduction Mode(FCCM)for Light Load
?Stable with low ESR Ceramic Capacitors
?1.2MHz Switching Frequency
?100%Duty Cycle Operation for Low Dropout
?Junction Temperature Range from?40℃to 125℃
?Power Good(PG)Indicator
?Programable Soft-Start Time
?Cycle-by-Cycle Output Current Limit Protection
?Short Circuit and Over-Load Hiccup Protection
?Thermal Shutdown Protection
?LGA-24(4mm×6mm×1.82mm)Package
?Pb-Free RoHS Compliant
APPLICATIONS
?Optical Module
?PoL Power Supply
?Data Center
?Solid-State and Hard Disk Drives
?Industrial&Medical System
DESCRIPTION
The M0506 is a 6A step-down switching mode Power SoC(System on Chip)with integrated controller,power MosFETs,inductor and input decoupling capacitor in LGA-24 package.The input voltage is from 2.7V to 6V and the switching frequency is fixed at 1.2MHz.
The M0506 provides high efficiency with COT control mode for fast transient response and good loop stability.It works on FCCM which keeps low output ripple and
supports 100%duty cycle for low dropout.
The M0506 indicates faults by PG and provides short circuit and over-load hiccup protection and over temperature shutdown protection.
