FEATURES
?Wide Input Voltage from 3V to 8.5V
?Adjustable Output Voltage from 0.6V to 5.5V
?6A Continuous Output Current
?Constant On Time(COT)Control
?Force Continuous Conduction Mode(FCCM)for Light Load
?Stable with low ESR Ceramic Capacitors
?1.4MHz Switching Frequency
?Pre-Biased Start-Up
?Power Good(PG)Indicator
?Programable Soft-Start Time
?Cycle-by-Cycle Current Limit Protection
?Short Circuit and Over-Load Hiccup Protection
?Thermal Shutdown Protection
?LGA-19(3mm×3.1mm×1.7mm)Package
?Pb-Free RoHS Compliant
APPLICATIONS
?PoL Power Supply
?Data Center
?Solid-State and Hard Disk Drives
?Industrial&Medical System
DESCRIPTION

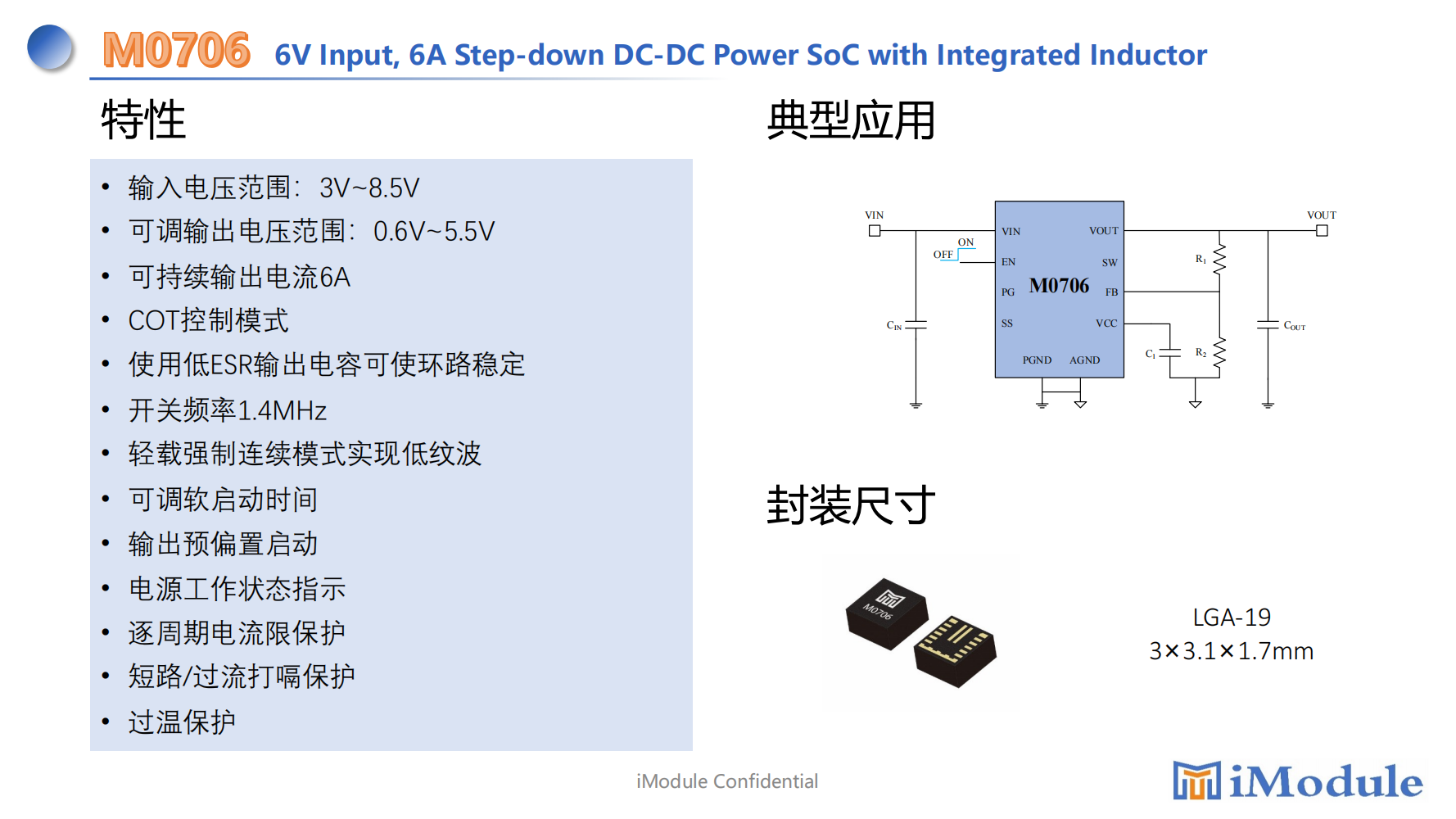

The M0706 is a 6A step-down switching mode Power SoC(System on Chip)with integrated power MosFETs,inductor in LGA-19 package.The input voltage is from 3V to 8.5V and the switching frequency is fixed at 1.4MHz.
The M0706 provides high efficiency with Constant On Time(COT)control mode for fast transient response and good loop stability.For M0706,it works on FCCM which keeps low output ripple.
The M0706 indicates faults by PG and provides short circuit and over-load hiccup protection and over temperature shutdown protection.
