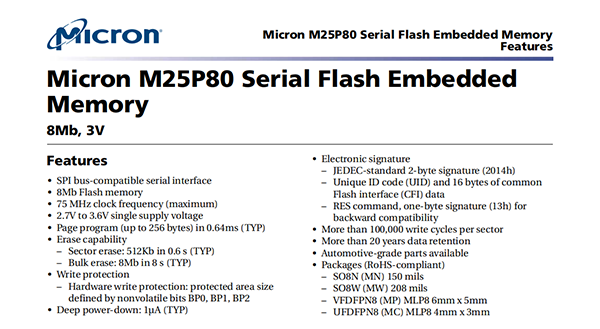

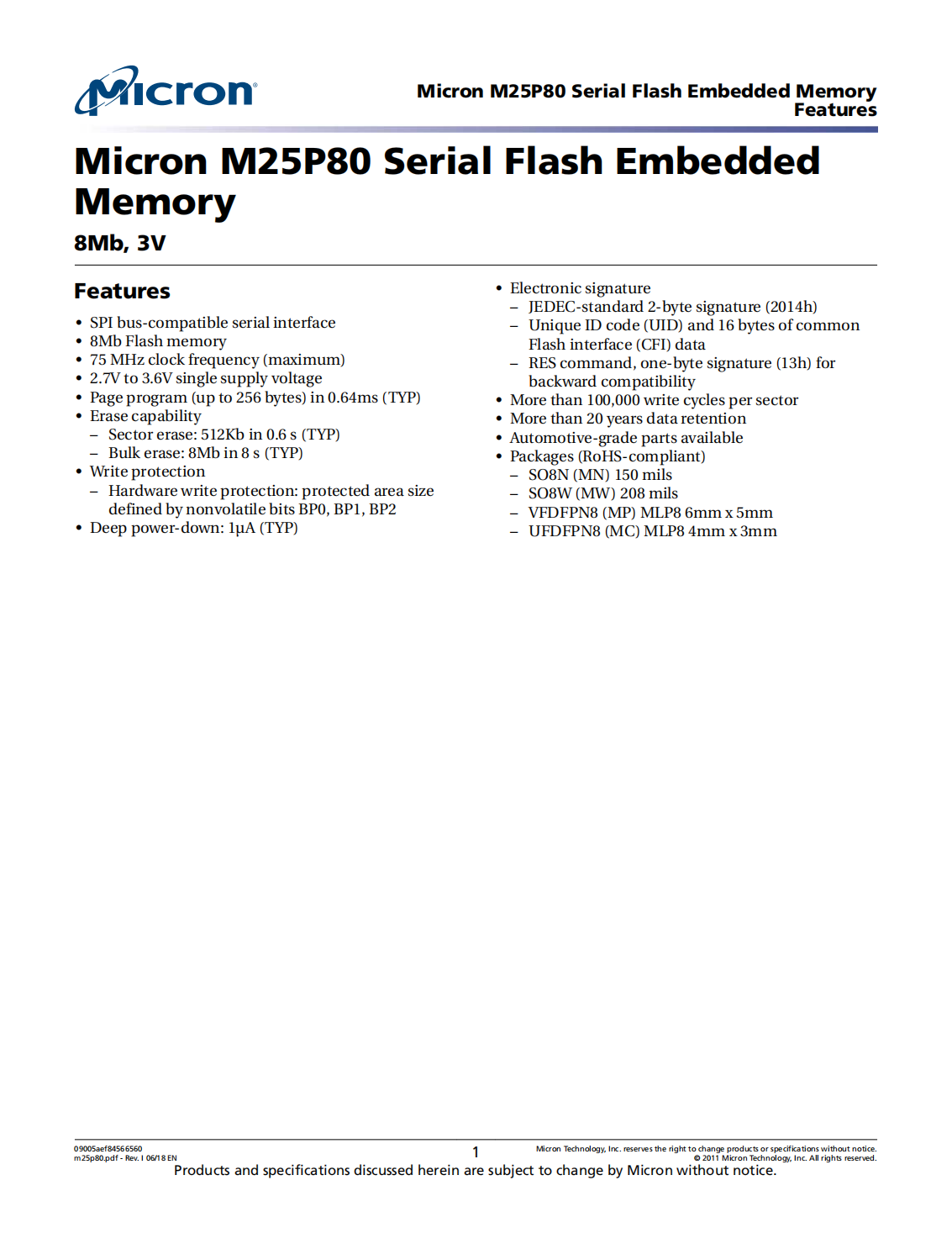

Features
?SPI bus-compatible serial interface
?8Mb Flash memory
?75 MHz clock frequency(maximum)
?2.7V to 3.6V single supply voltage
?Page program(up to 256 bytes)in 0.64ms(TYP)
?Erase capability
–Sector erase:512Kb in 0.6 s(TYP)
–Bulk erase:8Mb in 8 s(TYP)
?Write protection
–Hardware write protection:protected area size defined by nonvolatile bits BP0,BP1,BP2
?Deep power-down:1μA(TYP)
?Electronic signature
–JEDEC-standard 2-byte signature(2014h)
–Unique ID code(UID)and 16 bytes of common
Flash interface(CFI)data
–RES command,one-byte signature(13h)for backward compatibility
?More than 100,000 write cycles per sector
?More than 20 years data retention
?Automotive-grade parts available
?Packages(RoHS-compliant)
–SO8N(MN)150 mils
–SO8W(MW)208 mils
–VFDFPN8(MP)MLP8 6mm x 5mm
–UFDFPN8(MC)MLP8 4mm x 3mm
