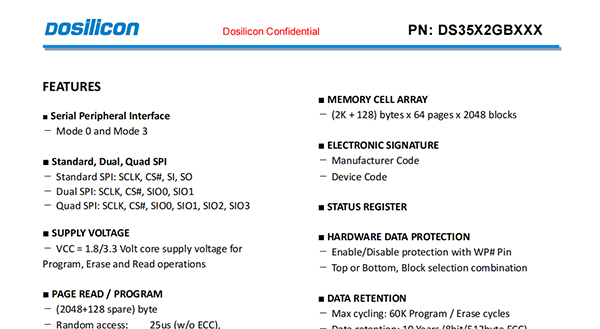

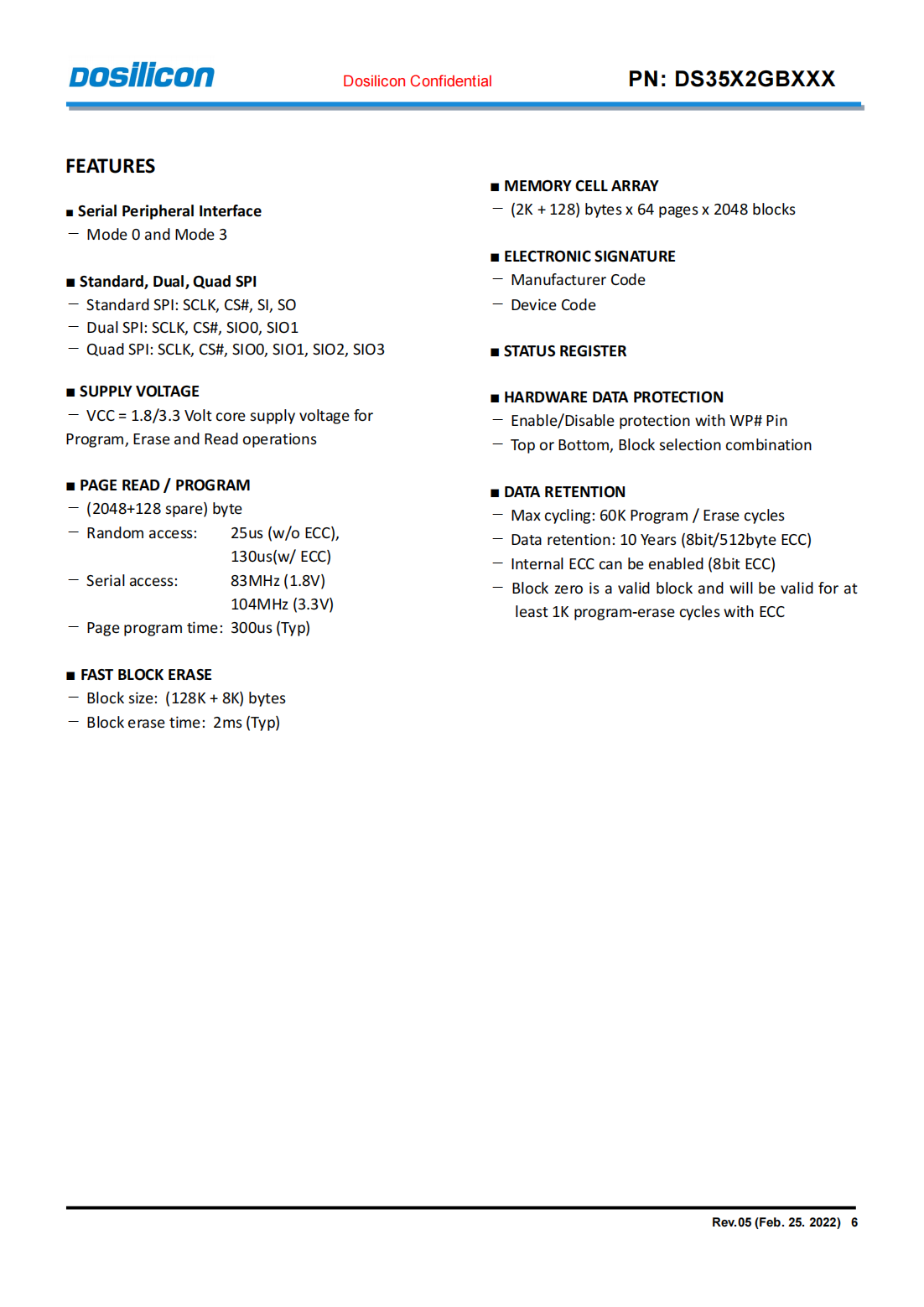

FEATURES

■Serial Peripheral Interface

－Mode 0 and Mode 3

■Standard,Dual,Quad SPI

－Standard SPI:SCLK,CS#,SI,SO

－Dual SPI:SCLK,CS#,SIO0,SIO1

－Quad SPI:SCLK,CS#,SIO0,SIO1,SIO2,SIO3

■SUPPLY VOLTAGE

－VCC=1.8/3.3 Volt core supply voltage for

Program,Erase and Read operations

■PAGE READ/PROGRAM

－(2048+128 spare)byte

－Random access:25us(w/o ECC),130us(w/ECC)

－Serial access:83MHz(1.8V)104MHz(3.3V)

－Page program time:300us(Typ)

■FAST BLOCK ERASE

－Block size:(128K+8K)bytes

－Block erase time:2ms(Typ)

■MEMORY CELL ARRAY

－(2K+128)bytes x 64 pages x 2048 blocks

■ELECTRONIC SIGNATURE

－Manufacturer Code

－Device Code

■STATUS REGISTER

■HARDWARE DATA PROTECTION

－Enable/Disable protection with WP#Pin

－Top or Bottom,Block selection combination

■DATA RETENTION

－Max cycling:60K Program/Erase cycles

－Data retention:10 Years(8bit/512byte ECC)

－Internal ECC can be enabled(8bit ECC)

－Block zero is a valid block and will be valid for at least 1K program-erase cycles with ECC
