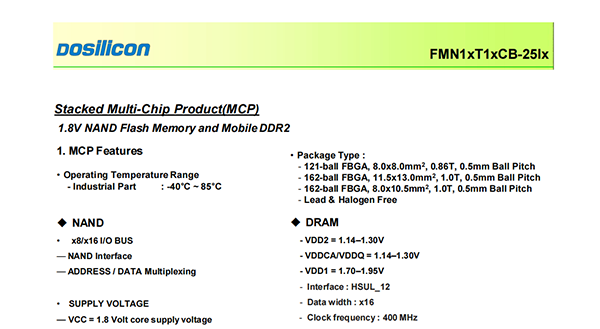

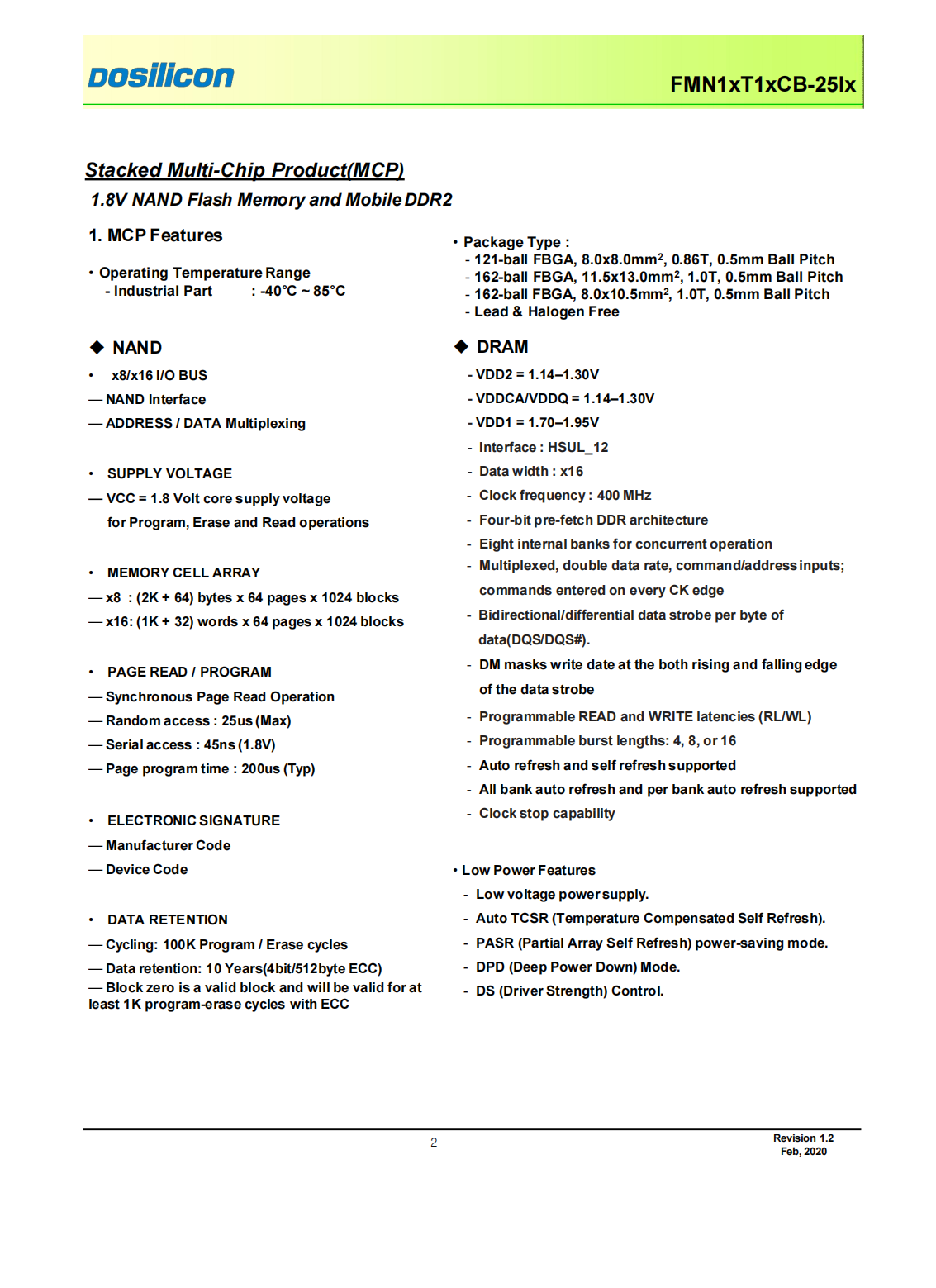

1.MCP Features?Package Type:
-121-ball FBGA,8.0x8.0mm2,0.86T,0.5mm Ball Pitch
-162-ball FBGA,11.5x13.0mm2,1.0T,0.5mm Ball Pitch
-162-ball FBGA,8.0x10.5mm2,1.0T,0.5mm Ball Pitch
-Lead&Halogen Free
?Operating Temperature Range
-Industrial Part:-40°C~85°C
?NAND
?x8/x16 I/O BUS
—NAND Interface
—ADDRESS/DATA Multiplexing
?SUPPLY VOLTAGE
—VCC=1.8 Volt core supply voltage for Program,Erase and Read operations
?MEMORY CELL ARRAY
—x8:(2K+64)bytes x 64 pages x 1024 blocks
—x16:(1K+32)words x 64 pages x 1024 blocks
?PAGE READ/PROGRAM
—Synchronous Page Read Operation
—Random access:25us(Max)
—Serial access:45ns(1.8V)
—Page program time:200us(Typ)
?ELECTRONIC SIGNATURE
—Manufacturer Code
—Device Code
?DATA RETENTION
—Cycling:100K Program/Erase cycles
—Data retention:10 Years(4bit/512byte ECC)
—Block zero is a valid block and will be valid for at least 1K program-erase cycles with ECC
?DRAM
-VDD2=1.14–1.30V
-VDDCA/VDDQ=1.14–1.30V
-VDD1=1.70–1.95V
-Interface:HSUL_12
-Data width:x16
-Clock frequency:400 MHz
-Four-bit pre-fetch DDR architecture
-Eight internal banks for concurrent operation
-Multiplexed,double data rate,command/addressinputs;commands entered on every CK edge
-Bidirectional/differential data strobe per byte of data(DQS/DQS#).
-DM masks write date at the both rising and falling edge of the data strobe
-Programmable READ and WRITE latencies(RL/WL)
-Programmable burst lengths:4,8,or 16
-Auto refresh and self refresh supported
-All bank auto refresh and per bank auto refresh supported
-Clock stop capability
?Low Power Features
-Low voltage power supply.
-Auto TCSR(Temperature Compensated Self Refresh).
-PASR(Partial Array Self Refresh)power-saving mode.
-DPD(Deep Power Down)Mode.
-DS(Driver Strength)Control.
