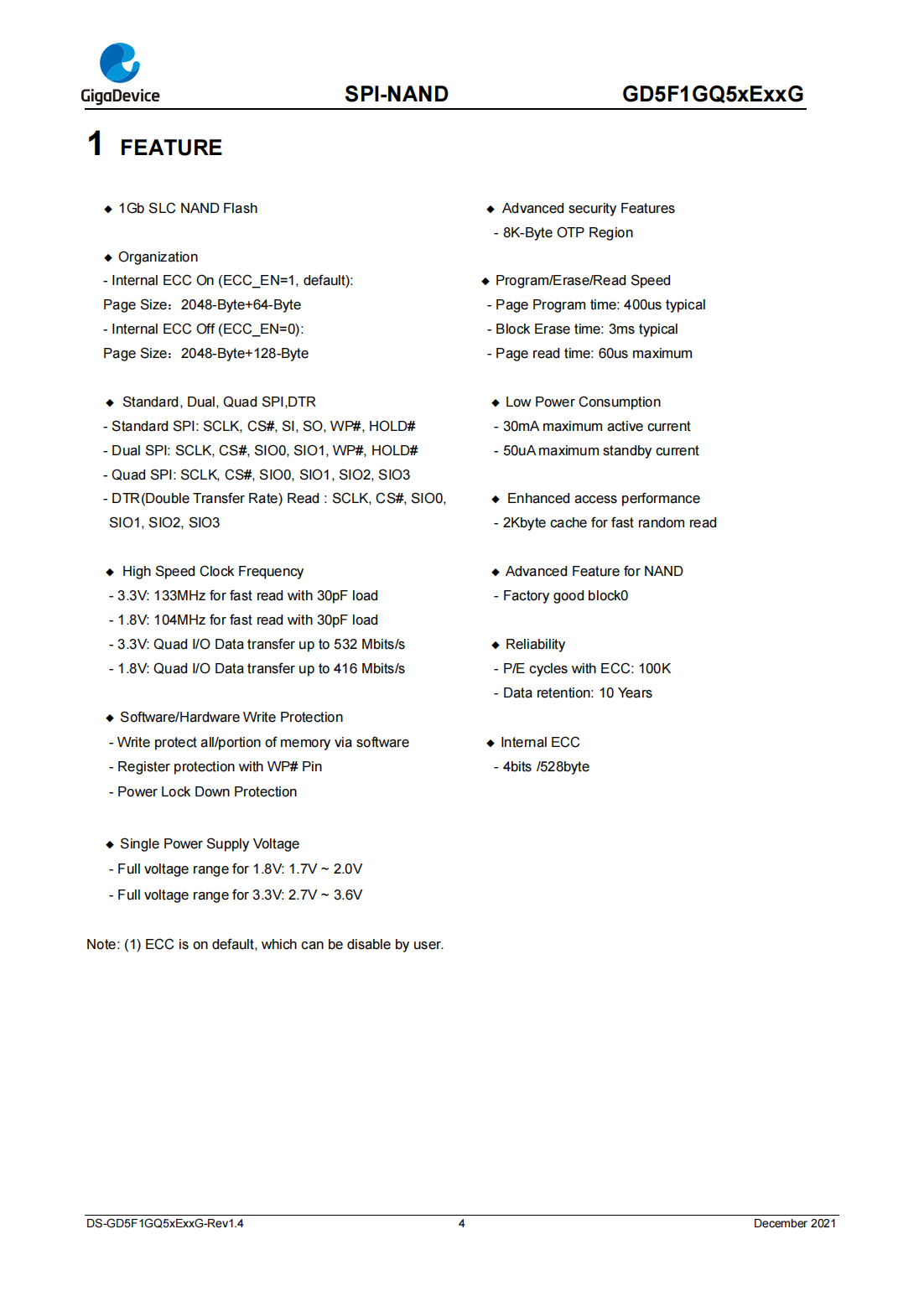

FEATURE
◆1Gb SLC NAND Flash◆Advanced security Features
-8K-Byte OTP Region
◆Organization
-Internal ECC On(ECC_EN=1,default):◆Program/Erase/Read Speed Page Size：2048-Byte+64-Byte-Page Program time:400us typical
-Internal ECC Off(ECC_EN=0):-Block Erase time:3ms typical Page Size：2048-Byte+128-Byte-Page read time:60us maximum
◆Standard,Dual,Quad SPI,DTR◆Low Power Consumption
-Standard SPI:SCLK,CS#,SI,SO,WP#,HOLD#-30mA maximum active current
-Dual SPI:SCLK,CS#,SIO0,SIO1,WP#,HOLD#-50uA maximum standby current
-Quad SPI:SCLK,CS#,SIO0,SIO1,SIO2,SIO3
-DTR(Double Transfer Rate)Read:SCLK,CS#,SIO0,◆Enhanced access performance SIO1,SIO2,SIO3-2Kbyte cache for fast random read
◆High Speed Clock Frequency◆Advanced Feature for NAND
-3.3V:133MHz for fast read with 30pF load-Factory good block0
-1.8V:104MHz for fast read with 30pF load
-3.3V:Quad I/O Data transfer up to 532 Mbits/s◆Reliability
-1.8V:Quad I/O Data transfer up to 416 Mbits/s-P/E cycles with ECC:100K
-Data retention:10 Years
◆Software/Hardware Write Protection
-Write protect all/portion of memory via software◆Internal ECC
-Register protection with WP#Pin-4bits/528byte
-Power Lock Down Protection
◆Single Power Supply Voltage
-Full voltage range for 1.8V:1.7V~2.0V
-Full voltage range for 3.3V:2.7V~3.6V
Note:(1)ECC is on default,which can be disable by user.
