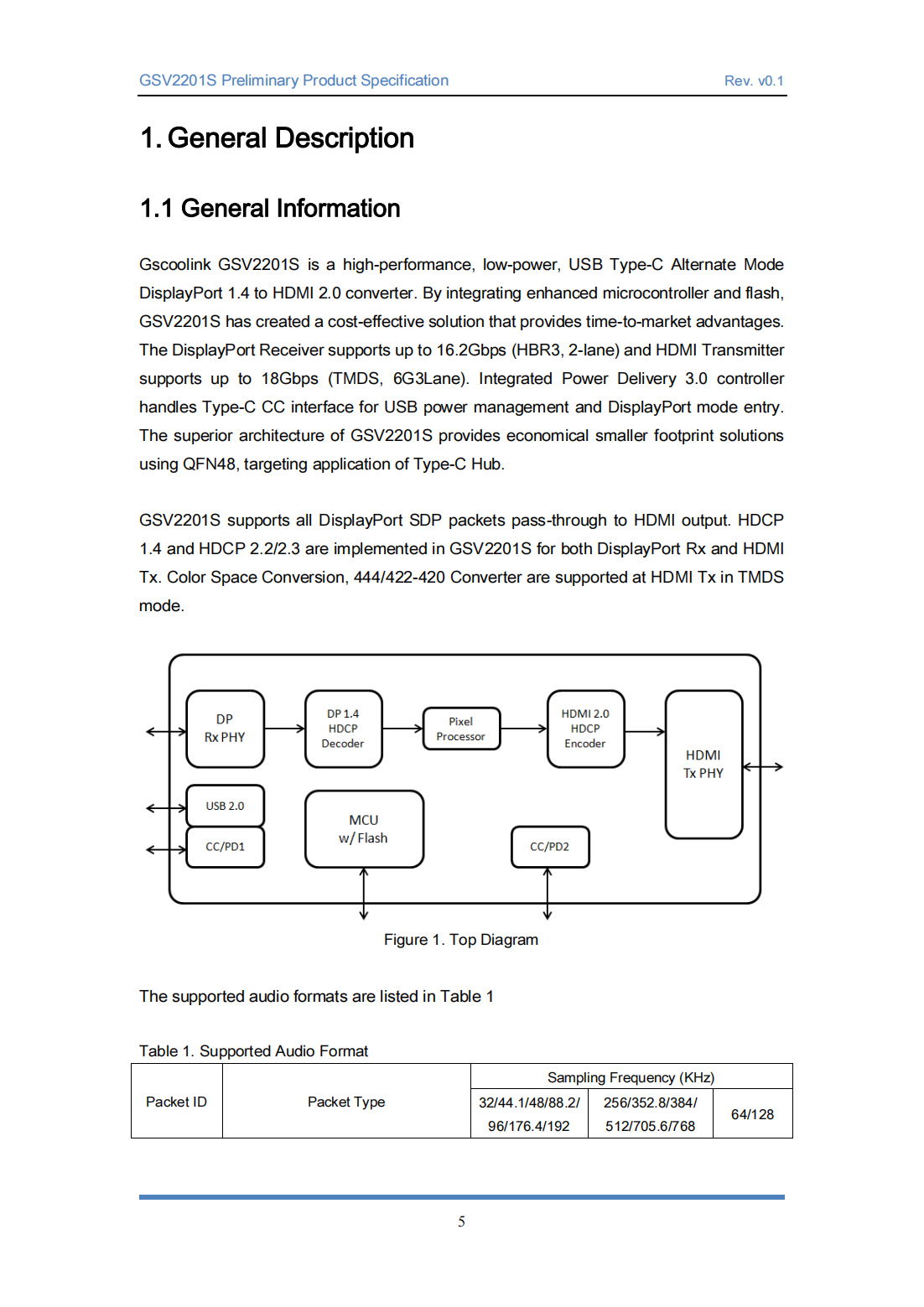

General Information
Gscoolink GSV2201S is a high-performance,low-power,USB Type-C Alternate Mode DisplayPort 1.4 to HDMI 2.0 converter.By integrating enhanced microcontroller and flash,GSV2201S has created a cost-effective solution that provides time-to-market advantages.The DisplayPort Receiver supports up to 16.2Gbps(HBR3,2-lane)and HDMI Transmitter supports up to 18Gbps(TMDS,6G3Lane).Integrated Power Delivery 3.0 controller handles Type-C CC interface for USB power management and DisplayPort mode entry.

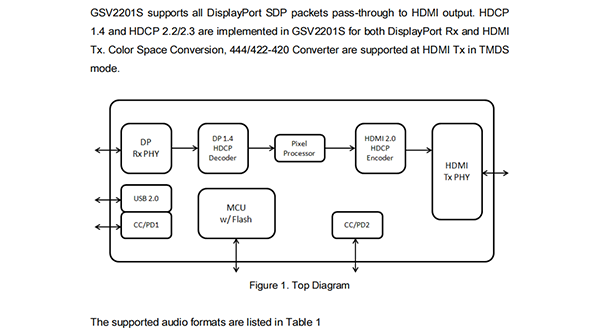

The superior architecture of GSV2201S provides economical smaller footprint solutionsusing QFN48,targeting application of Type-C Hub.GSV2201S supports all DisplayPort SDP packets pass-through to HDMI output.HDCP 1.4 and HDCP 2.2/2.3 are implemented in GSV2201S for both DisplayPort Rx and HDMI Tx.Color Space Conversion,444/422-420 Converter are supported at HDMI Tx in TMDS mode.
