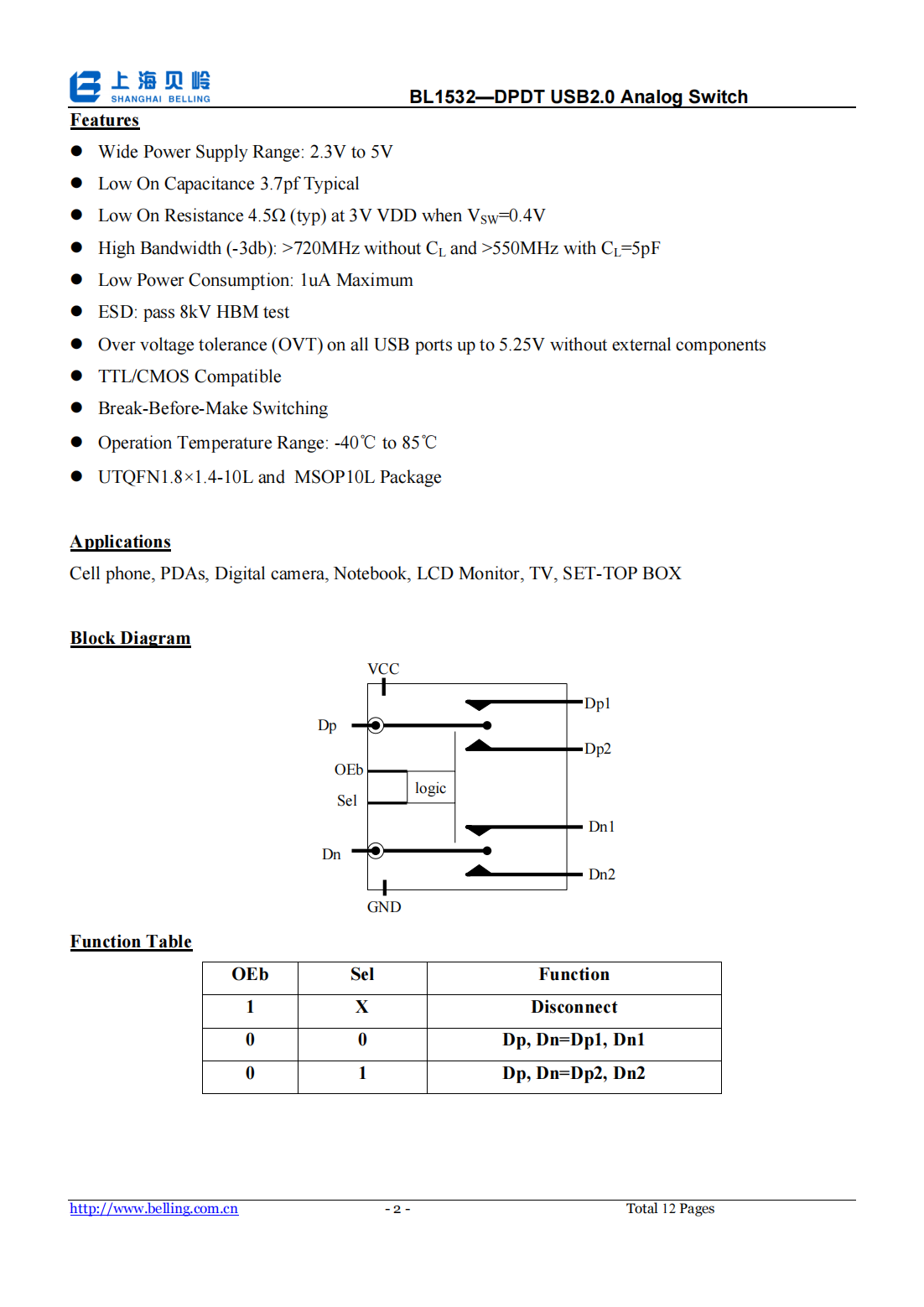

Description
The BL1532 is a Low-Power,Two-Port,High-Speed,USB2.0(480Mbps)double–pole double-throw(DPDT)Analog Switch featuring an On-Resistance of 4.5 ohm at VCC=3V and a Low On Capacitance 3.7pf Typical.
The BL1532 is compatible with the requirements of USB2.0 and the wide bandwidth needed to pass the third harmonic,resulting in signals with minimum edge and phase distortion.Superior channel-to channel crosstalk also minimizes interference.Break-before-make function for both parts eliminates signal disruption during switching from preventing both switches being enabled simultaneously.
