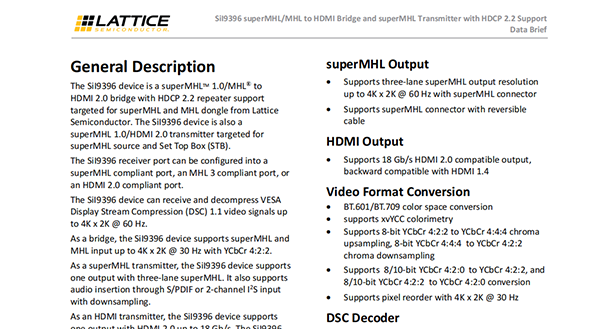

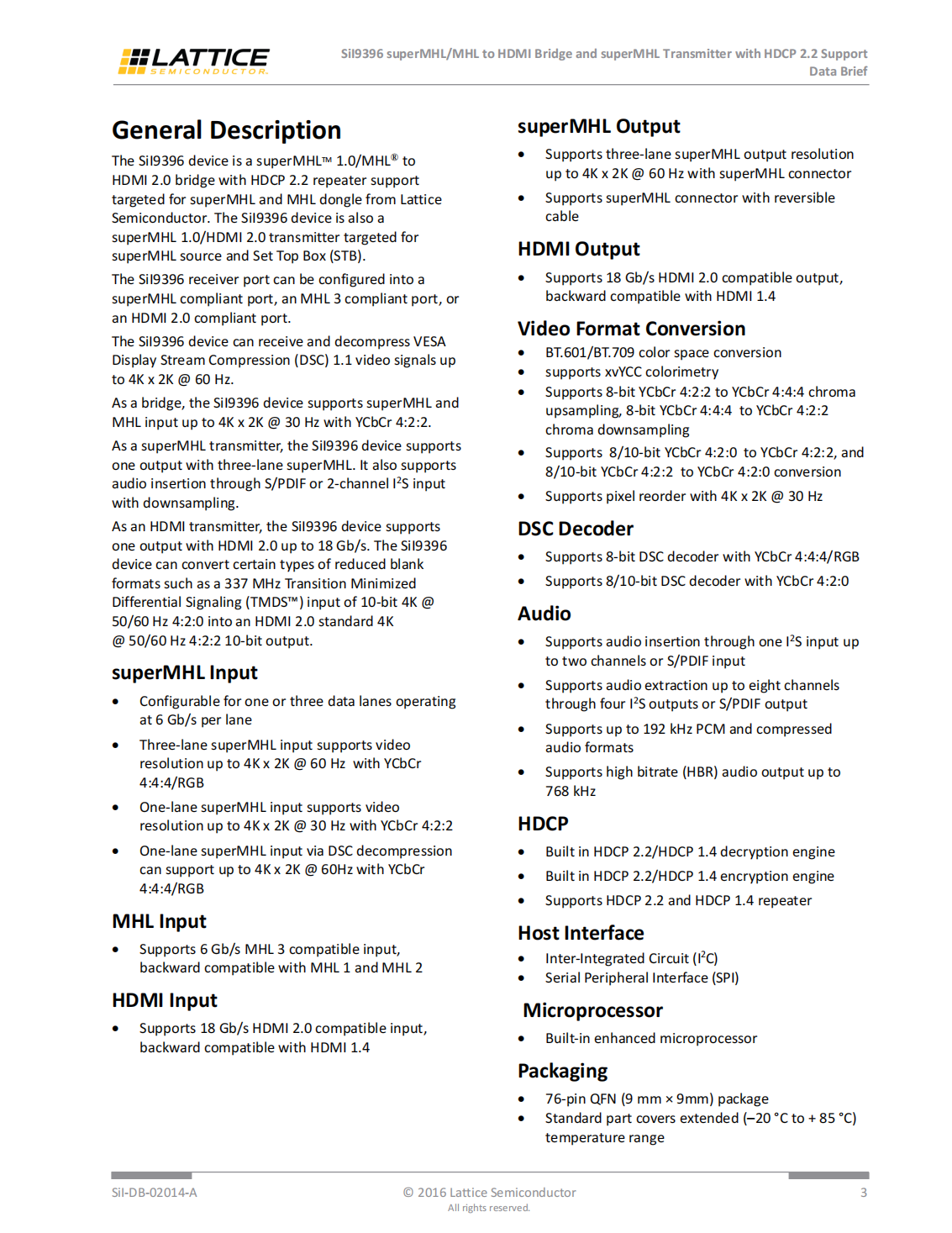

General Description
The SiI9396 device is a superMHLTM 1.0/MHL®to HDMI 2.0 bridge with HDCP 2.2 repeater support targeted for superMHL and MHL dongle from Lattice Semiconductor.The SiI9396 device is also a superMHL 1.0/HDMI 2.0 transmitter targeted for superMHL source and Set Top Box(STB).
The SiI9396 receiver port can be configured into a superMHL compliant port,an MHL 3 compliant port,or an HDMI 2.0 compliant port.
The SiI9396 device can receive and decompress VESADisplay Stream Compression(DSC)1.1 video signals up to 4K x 2K 60 Hz.As a bridge,the SiI9396 device supports superMHL and MHL input up to 4K x 2K 30 Hz with YCbCr 4:2:2.As a superMHL transmitter,the SiI9396 device supports one output with three-lane superMHL.It also supports audio insertion through S/PDIF or 2-channel I2S input with downsampling.As an HDMI transmitter,the SiI9396 device supports one output with HDMI 2.0 up to 18 Gb/s.The SiI9396device can convert certain types of reduced blank formats such as a 337 MHz Transition Minimized Differential Signaling(TMDS?)input of 10-bit 4K 50/60 Hz 4:2:0 into an HDMI 2.0 standard 4K 50/60 Hz 4:2:2 10-bit output.
superMHL Input
?Configurable for one or three data lanes operating at 6 Gb/s per lane
?Three-lane superMHL input supports video resolution up to 4K x 2K 60 Hz with YCbCr 4:4:4/RGB
?One-lane superMHL input supports video resolution up to 4K x 2K 30 Hz with YCbCr 4:2:2
?One-lane superMHL input via DSC decompression can support up to 4K x 2K 60Hz with YCbCr 4:4:4/RGB
MHL Input
?Supports 6 Gb/s MHL 3 compatible input,backward compatible with MHL 1 and MHL 2
HDMI Input
?Supports 18 Gb/s HDMI 2.0 compatible input,backward compatible with HDMI 1.4
superMHL Output
?Supports three-lane superMHL output resolution up to 4K x 2K 60 Hz with superMHL connector
?Supports superMHL connector with reversible cable
