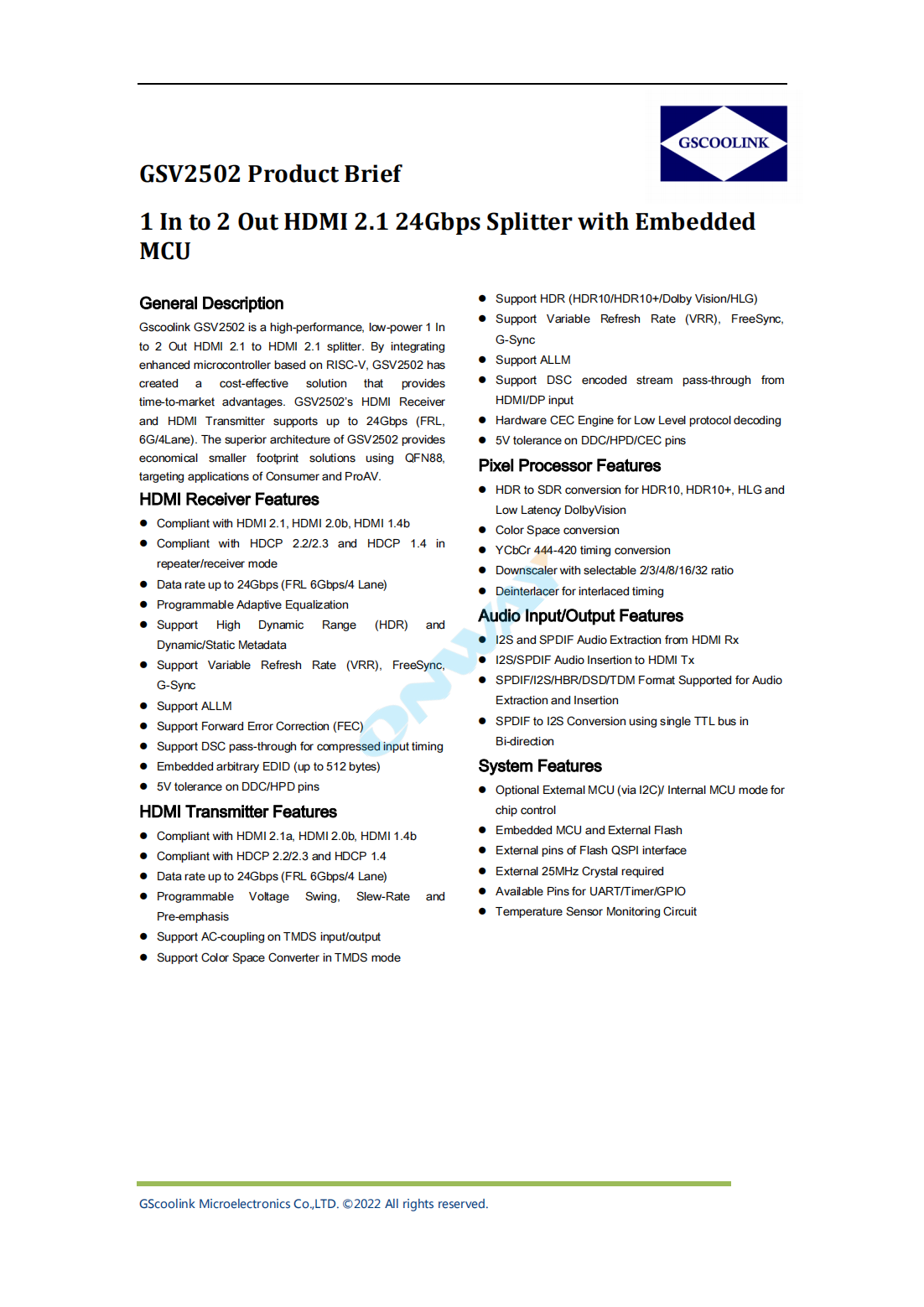

General Description

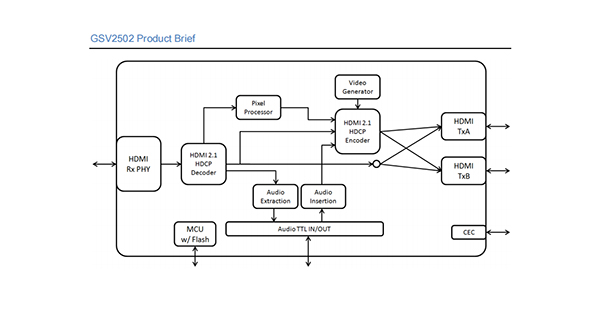

Gscoolink GSV2502 is a high-performance,low-power 1 In to 2 Out HDMI 2.1 to HDMI 2.1 splitter.By integrating enhanced microcontroller based on RISC-V,GSV2502 has created a cost-effective solution that provides time-to-market advantages.GSV2502’s HDMI Receiver and HDMI Transmitter supports up to 24Gbps(FRL,6G/4Lane).The superior architecture of GSV2502 provides economical smaller footprint solutions using QFN88,targeting applications of Consumer and ProAV.
HDMI Receiver Features
?Compliant with HDMI 2.1,HDMI 2.0b,HDMI 1.4b
?Compliant with HDCP 2.2/2.3 and HDCP 1.4 in repeater/receiver mode
?Data rate up to 24Gbps(FRL 6Gbps/4 Lane)
?Programmable Adaptive Equalization
?Support High Dynamic Range(HDR)and Dynamic/Static Metadata
?Support Variable Refresh Rate(VRR),FreeSync,G-Sync
?Support ALLM
?Support Forward Error Correction(FEC)
?Support DSC pass-through for compressed input timing
?Embedded arbitrary EDID(up to 512 bytes)
?5V tolerance on DDC/HPD pins
HDMI Transmitter Features
?Compliant with HDMI 2.1a,HDMI 2.0b,HDMI 1.4b
?Compliant with HDCP 2.2/2.3 and HDCP 1.4
?Data rate up to 24Gbps(FRL 6Gbps/4 Lane)
?Programmable Voltage Swing,Slew-Rate and Pre-emphasis
?Support AC-coupling on TMDS input/output
?Support Color Space Converter in TMDS mode
?Support HDR(HDR10/HDR10+/Dolby Vision/HLG)
?Support Variable Refresh Rate(VRR),FreeSync,G-Sync
?Support ALLM
?Support DSC encoded stream pass-through from HDMI/DP input
?Hardware CEC Engine for Low Level protocol decoding
?5V tolerance on DDC/HPD/CEC pins
Pixel Processor Features
?HDR to SDR conversion for HDR10,HDR10+,HLG and Low Latency DolbyVision
?Color Space conversion
?YCbCr 444-420 timing conversion
?Downscaler with selectable 2/3/4/8/16/32 ratio
?Deinterlacer for interlaced timing
Audio Input/Output Features
?I2S and SPDIF Audio Extraction from HDMI Rx
?I2S/SPDIF Audio Insertion to HDMI Tx
?SPDIF/I2S/HBR/DSD/TDM Format Supported for Audio Extraction and Insertion
?SPDIF to I2S Conversion using single TTL bus in Bi-direction
System Features
?Optional External MCU(via I2C)/Internal MCU mode for chip control
?Embedded MCU and External Flash
?External pins of Flash QSPI interface
?External 25MHz Crystal required
?Available Pins for UART/Timer/GPIO
?Temperature Sensor Monitoring Circuit
