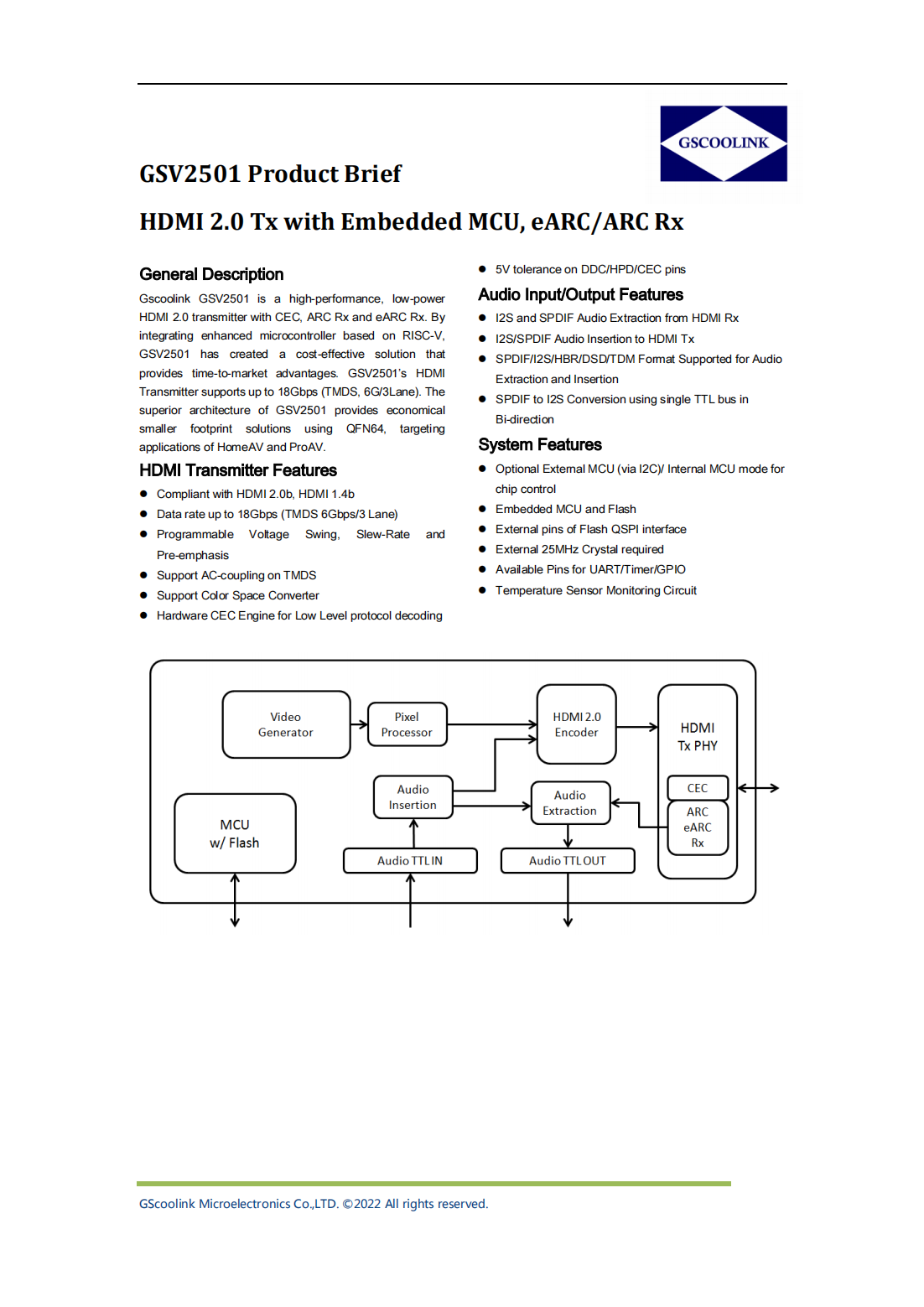

General Description
Gscoolink GSV2501 is a high-performance,low-power HDMI 2.0 transmitter with CEC,ARC Rx and eARC Rx.By integrating enhanced microcontroller based on RISC-V,GSV2501 has created a cost-effective solution that provides time-to-market advantages.GSV2501’s HDMI Transmitter supports up to 18Gbps(TMDS,6G/3Lane).The superior architecture of GSV2501 provides economical smaller footprint solutions using QFN64,targeting applications of HomeAV and ProAV.
HDMI Transmitter Features
?Compliant with HDMI 2.0b,HDMI 1.4b
?Data rate up to 18Gbps(TMDS 6Gbps/3 Lane)
?Programmable Voltage Swing,Slew-Rate andPre-emphasis
?Support AC-coupling on TMDS
?Support Color Space Converter
?Hardware CEC Engine for Low Level protocol decoding
?5V tolerance on DDC/HPD/CEC pins
Audio Input/Output Features
?I2S and SPDIF Audio Extraction from HDMI Rx
?I2S/SPDIF Audio Insertion to HDMI Tx
?SPDIF/I2S/HBR/DSD/TDM Format Supported for Audio Extraction and Insertion
?SPDIF to I2S Conversion using single TTL bus in Bi-direction
System Features
?Optional External MCU(via I2C)/Internal MCU mode for chip control
?Embedded MCU and Flash
?External pins of Flash QSPI interface
?External 25MHz Crystal required
?Available Pins for UART/Timer/GPIO
?Temperature Sensor Monitoring Circuit
