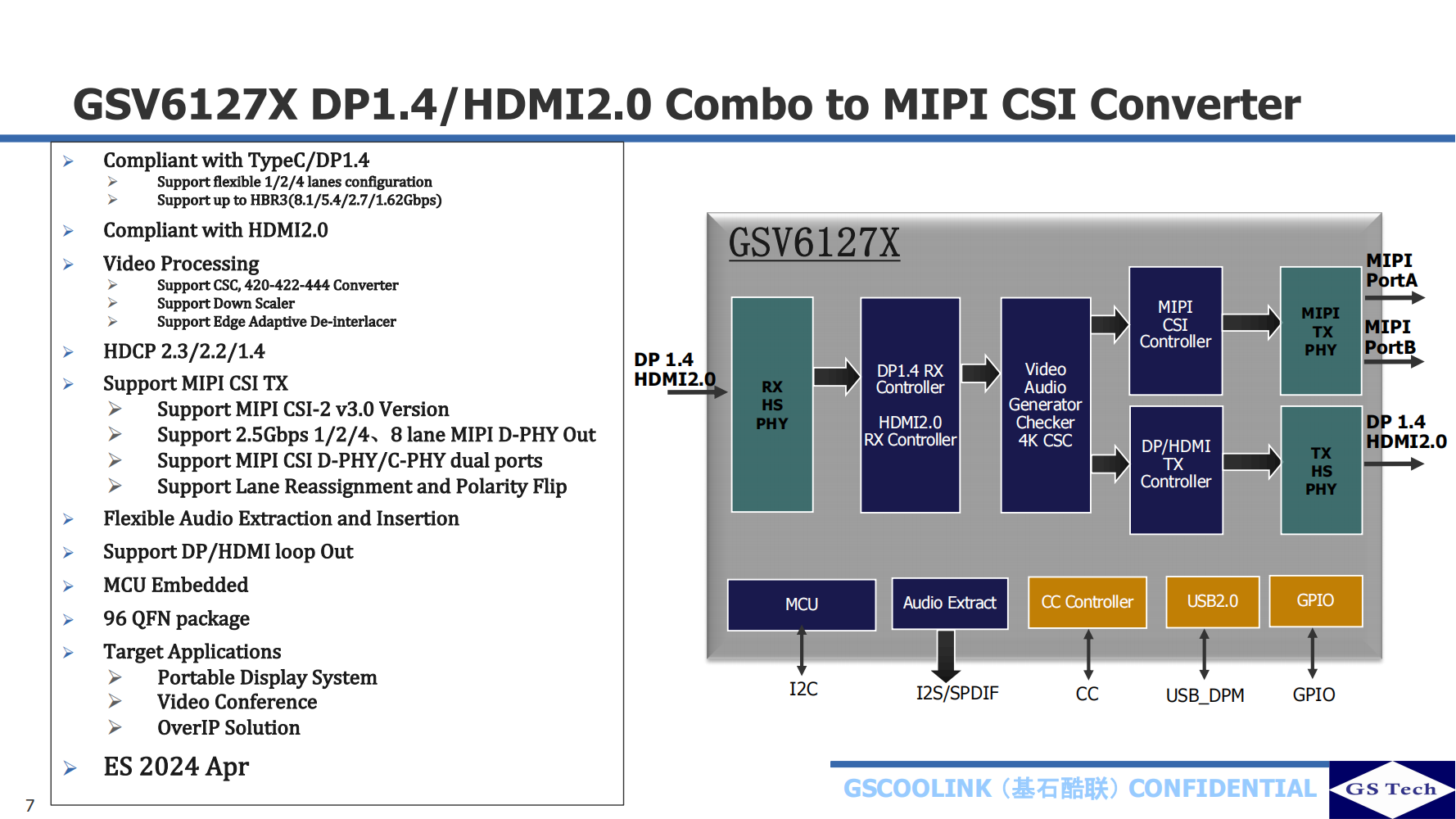

Compliant with TypeC/DP1.4
Support flexible 1/2/4 lanes configuration
Support up to HBR3(8.1/5.4/2.7/1.62Gbps)
Compliant with HDMI2.0
Video Processing
Support CSC,420-422-444 Converter
Support Down Scaler
Support Edge Adaptive De-interlacer
HDCP 2.3/2.2/1.4
Support MIPI CSI TX
Support MIPI CSI-2 v3.0 Version
Support 2.5Gbps 1/2/4、8 lane MIPI D-PHY Out
Support MIPI CSI D-PHY/C-PHY dual ports
Support Lane Reassignment and Polarity Flip
Flexible Audio Extraction and Insertion
Support DP/HDMI loop Out
MCU Embedded
96 QFN package
Target Applications
Portable Display System
Video Conference
OverIPSolution
